Bundle Puller(Bundle Extractor)

Here below are some of the features of our bundle extractors:

-- By cancellation of the lift frame which driven by the hydraulic cylinder but use sling rope and longer cradle moving distance instead, we simplify the hydraulic system and driving cylinders and save costs for customers.

-- Most of the cylinders, hydraulic pipings and cables/wires are installed in the steel structure frames, which much decrease the risk of damages during working.

-- Most of the hydraulic&electrical components are installed on the outside of the hydraulic oil tank, which well protected by steel frames from any damage

-- In case of where any repairing or maintenance needed, the steel structure is designed to conveniently be opened

-- ALL of the components equipped in the extractor are STANDARD components from market, which means lower cost and convenient for maintenance or repairing.

-- For these reasons, although our manufacturer have sold more than 600 sets of all kindly of bundle extractor/puller in China, they have just very few after service needed from end customers. On other hand, it means once our customers needed, they have adequate technical/techcians for support.

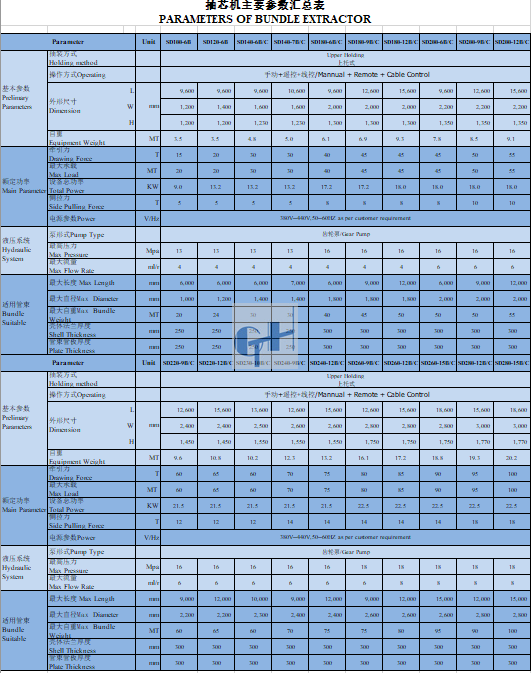

Main Parameters:

• Max Bundle OD:               2800mm
• Max Bundle Length:         15,000 mm
• Max Bundle Weight:         100 MT
• Operating Method:            Manual, Remote or Cable control
